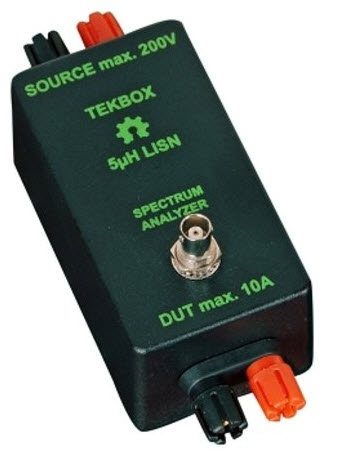

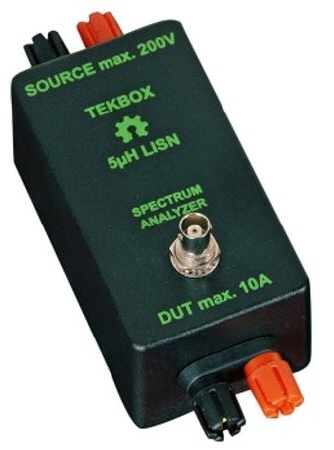

The TBOH01 5μH LISN is a device required to setup conducted noise mesurements of DC-powered devices. It is designed to be used for EMC pre-testing in the frequency range of 150kHz to 110 MHz according to the CISPR-25 standard.
The LISN is inserted into the supply line of the DUT (Device Under Test). Conducted noise which is present at the supply terminals of the DUT can be measured at the BNC connector using a spectrum analyzer or a measurement receiver. The source (supply) terminal and the DUT terminal are decoupled by a 5μH inductor.

Line Impedance Stabilisation Network


Weiteres EMV Komponenten folgen bald!



Fragen Sie uns an für eine Offerte! >>> Kontakt

Specifications

Frequency range: 100kHz – 110MHz (1GHz, see figure 4 in the manual)

DC Resistance: 35 mΩ

Maximum current: 10A

Maximum source voltage: 200V

Ein ausführliches Datenblatt finden Sie hier:
Datenblatt >>>> tekbox_tbsoh01-lisn-manual-_20140317.pdf [621 KB]



375.00 CHF

Artikel-Nr: TBOH01

incl. 7.7% MwSt. zzgl. Versand

nicht mehr lieferbar

Anzahl:   St



TBAS1 RF Attenuator Set The TBAS1 RF attenuator set consists of a 3dB, 6dB, 10dB and 20dB attenuator in a beech wood box 135.00 CHF

TBAS2 SMA Attenuator/Termination The TBAS2 RF SMA attenuator/termination set consists of a 3dB, 6dB, 10dB, 15dB, 20dB and 30dB SMA attenuators in a beech wood box 199.00 CHF

TBAS3 - 10W N RF Attenuator Set The TBAS3 RF attenuator set consists of a 3dB, 6dB, 10dB and 20dB attenuator in a beech wood box 199.00 CHF

TBST120/60/60/2 Shielded Tent The TBST-120/60/60/2 is a shielded tent, designed to suppress interference from ambient noise during EMC pre-compliance measurements. With a size of 120 cm x 60 cm x 60 cm, it can accommodate any Tekbox pre-compliance test equipment such as LISNs or TEM-cells 2'975.00 CHF

TBL0550-1 5uH 50A 5uH 50A Line Impedance Stabilisation Network LISN 785.00 CHF

TBHDR1 High Dynamic Range RF Pre-Amplifier The TBHDR1 is a high dynamic range amplifier with a frequency range from 30kHz to 1.5GHz. Its gain is characterized up to 6GHz. The TBHDR1 has a high IP3 and a low noise figure which makes it an ideal alternative pre-amplifier for spectrum analyzers and receivers in EMC test applications. Due to its low noise figure, high IP3 and gain down to the kHz range it also performs very well as amplifier for active loop antennas. 285.00 CHF

TBLC08- LISN 50uH TEKBOX EMV Zubehör - EMV Precompliance - LISN TBLC08 50uH Line Impedance Stabilisation Network LISN - CISPR 16 985.00 CHF

TBOH01 - LISN 5uH 5uH Line Impedance Stabilisation Network LISN - CISPR 25The TBOH01 5ÁH LISN is a device required to setup conducted noise measurements of DC-powered devices. It is designed to be used for EMC pre-testing in the frequency range of 150kHz to 110 MHz 375.00 CHF

TEKBOX EMC Near Field Probes / 40dB Amp The H20, H10, H5 and E5 are magnetic field (H) and electric field (E) probes for radiated emissions EMC pre-compliance measurements. The probes are used in the near field of sources of electromagnetic radiation. 585.00 CHF
