DS2102E 100MHz Speicher DSO, 2 Kanal
Rigol DS2000E Series
Hochwertiges 2 Kanal DSO mit 100 MHz Bandbreite, 1 GSa/s (pro Kanal) und 28 Mpts Speichertiefe (pro Kanal).
Alle Optionen inklusive!
Alle Serial Decode und Advanced Triggering Optionen kostenlos

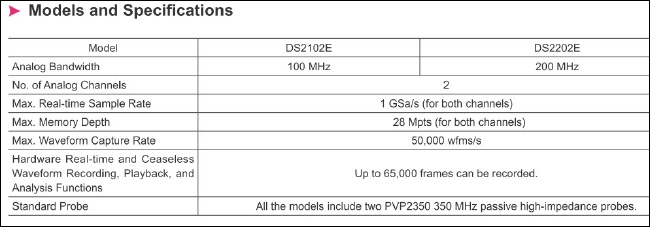

Feature and Benefits
100 MHz and 200 MHz bandwidth models
2 analog channels, 50 Ω input impedance (standard)
Vertical range: 500 μV/div ~ 10 V/div
Real-time sample rate: up to 1 GSa/s on both channels
Memory depth: up to 28 Mpts on both channels
Waveform capture rate: up to 50,000 wfms/s
Real-time hardware waveform recording, playback, and analysis of up to 65,000
captured frames
Various serial trigger and decode (RS232/UART, I2C, SPI, CAN and LIN)
Complete connectivity: USB DEVICE, USB Host, LAN, and optional GPIB
8-inch WVGA (800×480), 256-level intensity grading display
- ausführliches Datenblatt
- Quick Guide
im Lieferumfang enthalten:
- Schweizer Netzkabel
- USB Data Kabel
- 2 x Oscilloscope Probe
- CD Manual (E)
- Quick Start Guide
passendes optionales Zubehör finden Sie hier
|
|
|
